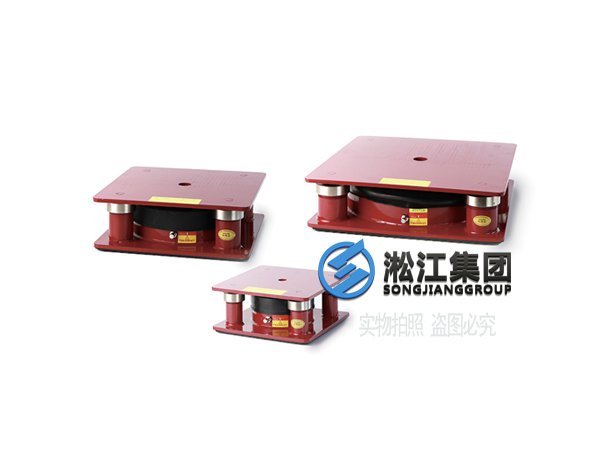

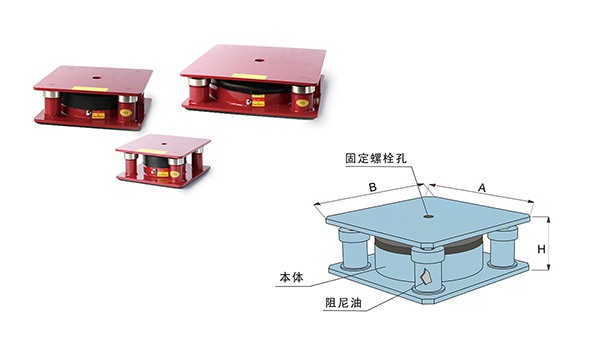

KQJZ-B型 阻尼空气减振器
官方承诺
橡胶主材：CR（氯丁橡胶）
液压材料：进口阻尼液
使用寿命：10年以上
五年质保：室内使用最高可以质保5年
减震效果：使用前后对比可达95%
支持检测：安装前后支持效果检测（第三方）
问题赔付：如有质量问题，退还全部货款，并承担拆装费和运费；
产品特性：
1、空气式减振装置，配合油压阻尼筒设计；
2、有效抑制设备振幅过大，保证设备稳定；
3、适用于冲击振动的消除，低自然频率值设计，减振效果佳；
4、使用CR（Neoprene Rubber）材质， 耐候性佳使用寿命长;
5、采用机器人焊接气垫壳体，橡胶与壳体一体成形；
6、气密性好，避免经常充气维护，使用更省心；
7、防油帽设计，具抗油性可防止一般油污腐蚀；
8、内部设计阻尼机构可有效避免共振现象；
9、自然频率3Hz~5Hz.阻尼系数 0.12~0.13，使用压力4.5 kg/cm^2，符合JISD-4101气垫耐压测试标准；
产品用途
适用于裁断机、高速冲床、注塑机、油压机、吸塑机、模切机、全自动喷涂油机、印刷机、纸箱压痕啤机、往复式空压机、下料机、纺织机、刺绣机针剌机、绗缝机、绣花机、成形机、打杯机、CNC机床、剪床、洗濯机、工业洗衣机、三座标检测仪、测长仪、二次元检测仪，测圆仪等自振较大设备的减振及易受振动干扰的设备隔振防振；
其他适合：减振效果要求更高，B型的摆动会比A型的摆动降低；
产品介绍
有效隔绝设备工作中产生的振动传导地面，同时也能隔绝外界的振动对精密设备的影响，减振效果能达到百分之95以上，放置高楼层的振动设备同样适用。
KQJZ-B Damping Air shock absorber
Official promise
Main rubber material: CR (chloroprene rubber)
Hydraulic material: imported damping fluid
Service life: more than 10 years
Five-year warranty: indoor use can be guaranteed for up to 5 years
Shock absorption effect: up to 95% before and after use
Support detection: support effect detection before and after installation (third party)
Compensation for problems: If there is a quality problem, the full payment will be refunded, and the disassembly and assembly fees and freight will be borne;
Product Usage:
Suitable for cutting machines, high-speed punches, injection molding machines, hydraulic presses, blister machines, die-cutting machines, automatic spraying oil machines, printing machines, carton creasing machines, reciprocating air compressors, blanking machines, textile machines, embroidery machines Needle punching machine, quilting machine, embroidery machine, forming machine, cupping machine, CNC machine tool, shearing machine, washing machine, industrial washing machine, three-coordinate detector, length measuring instrument, two-dimensional detector, circle measuring instrument, etc. Vibration reduction of equipment with large natural vibration and vibration isolation and anti-vibration of equipment susceptible to vibration interference;
Other suitability: The shock absorption effect is more demanding, and the swing of type B will be lower than that of type A;
product description:
Effectively isolate the vibration generated by the equipment from transmitting to the ground, and also isolate the impact of external vibration on precision equipment. The damping effect can reach more than 95%, and it is also suitable for placing high-floor vibration equipment.
