BYQ型 矩阵式弹簧减振器
上海淞江减震器集团有限公司为您介绍：矩阵式弹簧减震器 您还在为变压器的噪音而烦恼？信息，淞江集团为干式变压器设计一款矩阵式弹簧减震器，主要用于新型机房变压器减震降噪，我们为众多局维项目配套变压器减震器。
产品特性介绍：

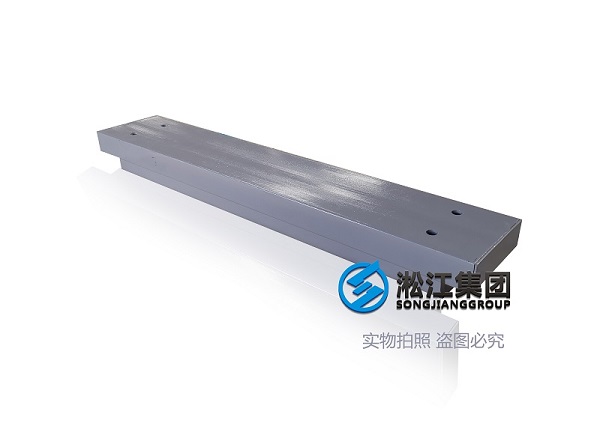

BYQ型矩阵式弹簧减振器由多组大外径、大变形量弹簧、上下钢板及橡胶防滑垫组成；
主要适用于：现代化机房变压器，例如云数据中心变压器；
产品具有变形量大、性能稳定、减振效果好、使用寿命长达10年以上；
减振隔音效果好，可以将变压器减振率90%以上，隔音量达到15~20dB；
减振器横向刚度与竖向刚度比值大于1.5，稳定性好；
BYQ Matrix type Spring damper
BYQ type matrix spring shock absorber consists of multiple groups of large outer diameter, large deformation springs,
upper and lower steel plates and rubber anti-skid pads;
Mainly applicable to: modern machine room transformer, such as cloud data center transformer;
The product has large deformation, stable performance, good isolation effect and service life of more than 10 years;
The isolation and sound insulation effect is good, the isolation rate of transformer can be more than 90%, and the
isolation volume can reach 15 ~ 20dB;
The ratio of lateral stiffness to vertical stiffness is more than 1.5 .
